Features:

  • Heavy Duty Screed and Mortar Mix preferred by Hire companies and Serious contractors!

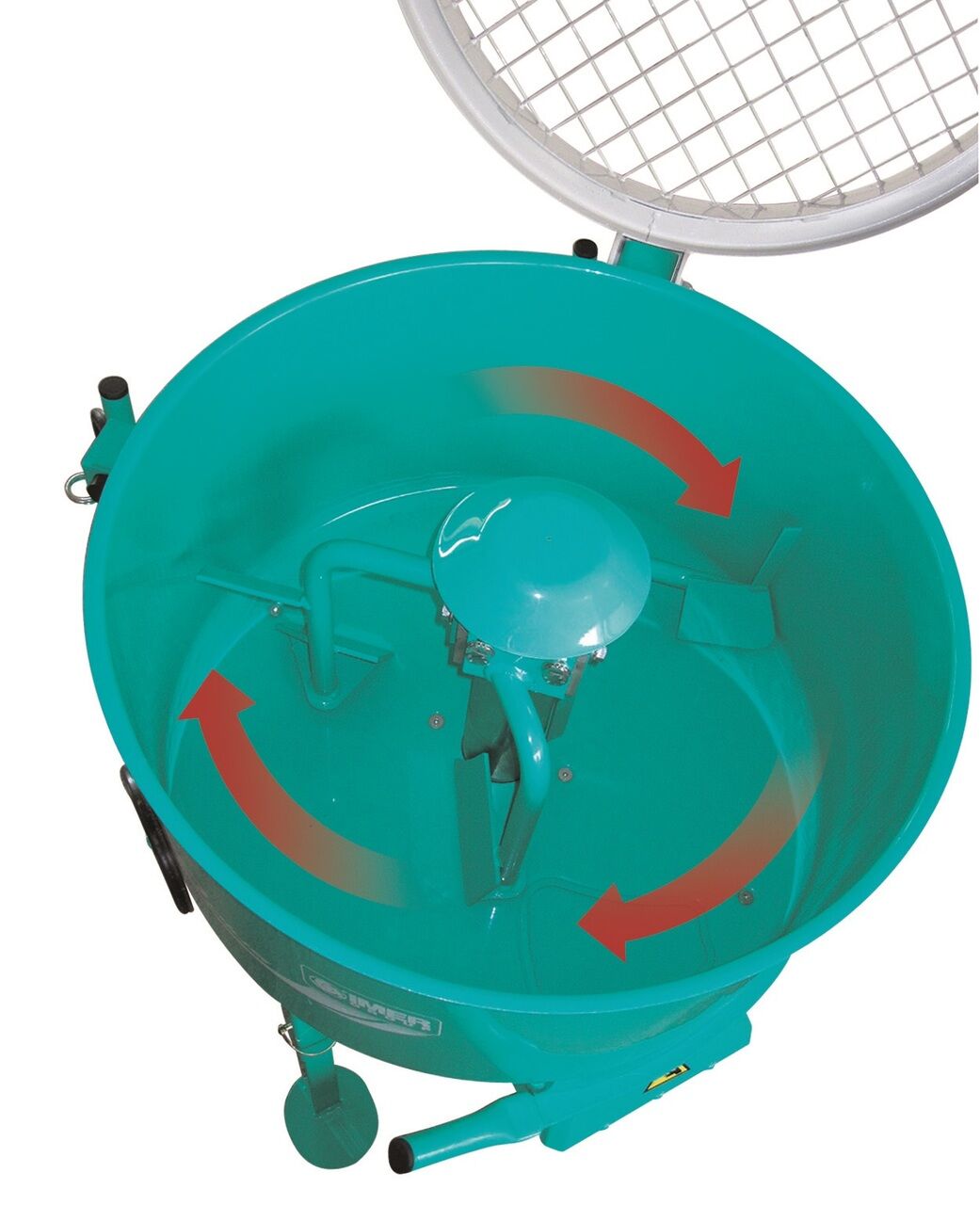

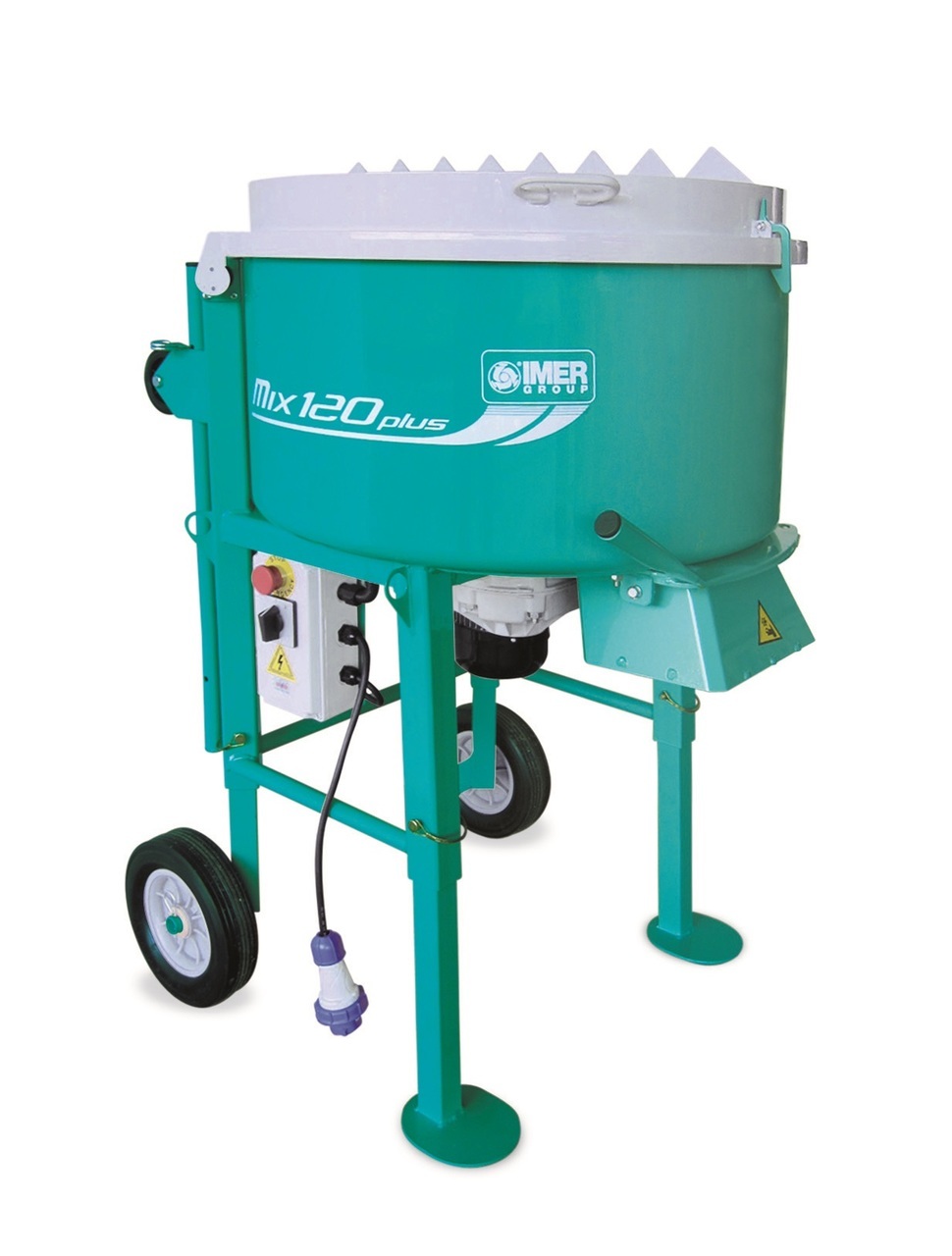

  • Compact mixer with planetary mixing system.
  • Adjustable discharge height, thanks to the extendable legs (max./min. 677/612 mm)
  • High power, improved speed and reversible paddle rotation at any time ensure optimised mix also with difficult products to batch (semi-dry mixtures and thixotropic products)
  • Homogeneous mix in short time using the forced duty planetary mixing system with optimised profile paddles.
  • No air is mixed with product
  • Ease in discharge operations and moving material thanks to the upper wheels and the extendable handles
  • Maximum safety for the operator: an electric device stops paddle rotation when the grid rises

STANDARD EQUIPMENT:

  • Single-phase motor 230V/50Hz -
  • Gearbox in oil bath and high performance Poly-V
  • Transmission belt
  • Additional wheels
  • Lifting hooks
  • Extendable handles

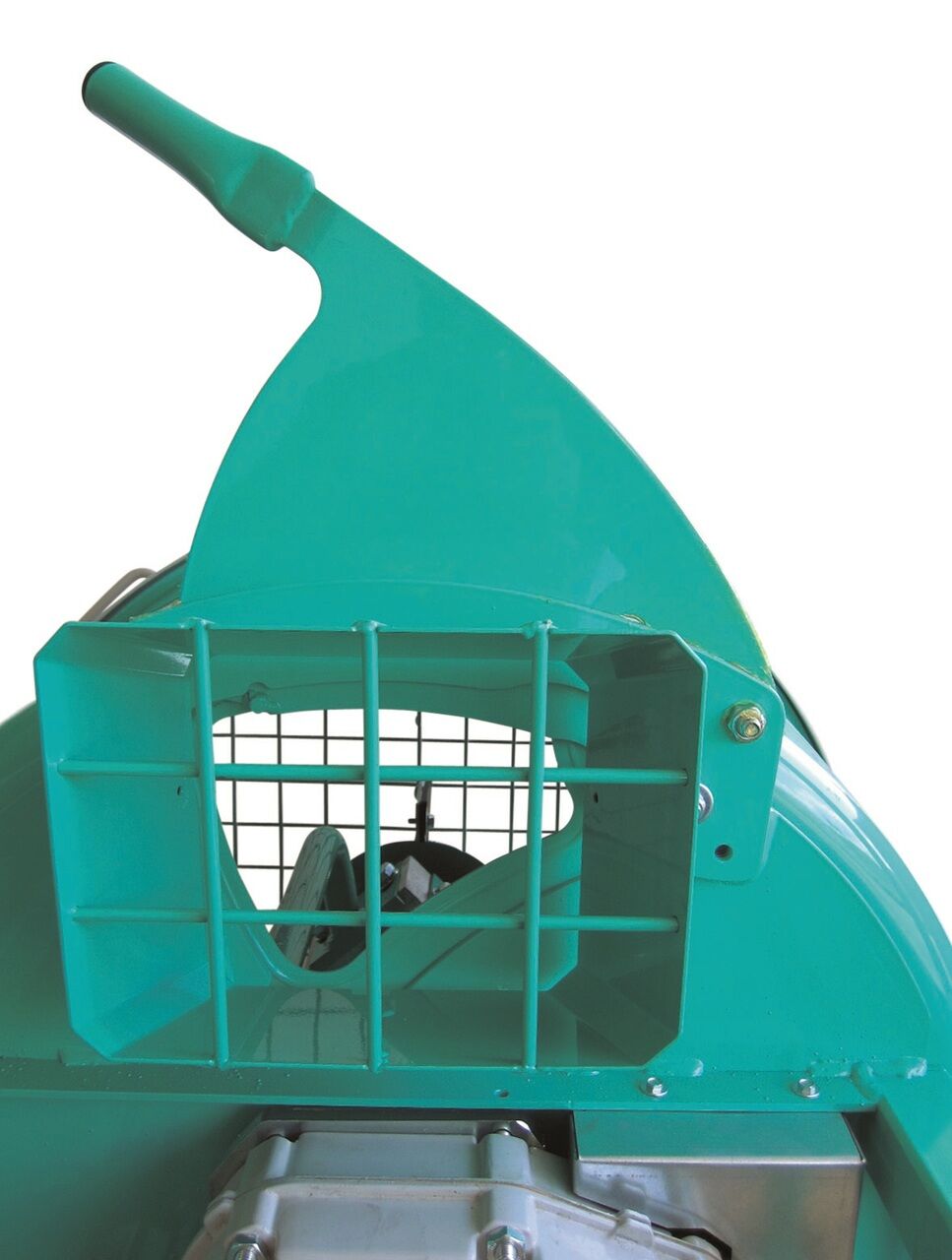

  • Grid with bag-splitting blades
  • Paddle rotation reversing gear
  • Switch with overheat safety system, insulation class
  • IP 55, no-volt coil and IP67 plug
  • Electric safety limit switch

TECHNICAL SPECIFICATIONS:

Lp in operators position dB(A): 70
Running current: 9 amps
Motor power rate: 1,4 kW
Paddle speed rpm: 38
Drum diameter mm: 745
Actual yield litre: 90
Drum capacity litre: 120
Width: 755mm (fits through a standard doorway)

SKU IM-MIX120P
Barcode # 1194300
Brand Imer
Shipping Weight 190.0000kg
Shipping Width 0.760m
Shipping Height 1.080m
Shipping Length 0.890m
